Loctite 510: Step-by-Step Guide, Uses, Benefits and Where to Buy (2025 Review)
🔍 What is Loctite 510 — the basics

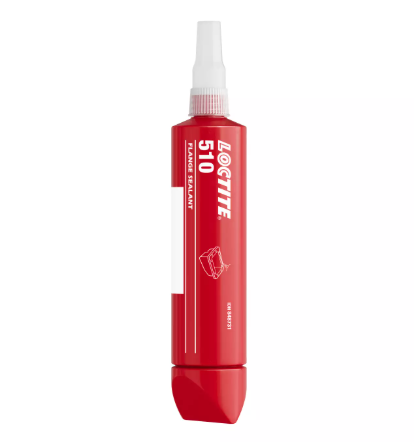

Let’s start at the core: Loctite 510 is a form-in-place, anaerobic gasketing sealant made by Henkel (Loctite®). Henkel Adhesives+1 It’s engineered to cure in the absence of air, when it’s confined between tightly mating metal surfaces (i.e. flanges). Henkel Adhesives+2Quality Bearings Online+2
Here’s how it’s characterized:
- It’s a single-component adhesive (no mixing required). Henkel Adhesives+1
- In its uncured state, it’s a pink, opaque, high-viscosity paste or gel. Ellsworth Adhesives+3Henkel Adhesives+3Alfabb+3
- Its curing is anaerobic (i.e. it hardens in the absence of oxygen, between metal surfaces). Quality Bearings Online+3Henkel Adhesives+3Ellsworth Adhesives+3
- It’s designed for rigid, machined metal flanges with small gaps (up to ~0.25 mm) Henkel Adhesives+3Henkel Adhesives+3Quality Bearings Online+3
- Once cured, it offers chemical and temperature resistance (resists oils, fuels, water/glycol mixture, etc.); its typical operating range is up to ~200 °C (some sources list ~204 °C) Henkel Adhesives+3Henkel Adhesives+3Quality Bearings Online+3
- It is registered to NSF Category P1 (in some regions) for use in non-food contact sealing applications in and around food processing plants (note: local regulations may differ) Henkel Adhesives+1
So essentially, Loctite 510 is a go-to when you have two clean, rigid metal surfaces that must be sealed without using a pre-cut gasket, and the gap is tight.
✅ What is Loctite 510 used for?
In practice, Loctite 510 is used in a number of industrial and mechanical sealing applications. Here are some common use cases and remarks:
| Application | Why Loctite 510 is used | Notes & tips |
|---|---|---|
| Sealing flanges on engine casings, transmissions, pumps | Because it can conform to surface irregularities (scratches, small gaps), provides a reliable seal | Use a continuous bead close to bolt holes, assemble quickly so surfaces are mated while sealant is still fresh. Henkel Adhesives+1 |
| Gasket replacement / elimination | Instead of inserting a pre-cut gasket, Loctite 510 can form a custom gasket in place | Less risk of gasket creep, relaxation, or misalignment Henkel Adhesives |
| Rigid metal flanges where disassembly is still desired | Loctite 510 is medium-strength (not a permanent, one-time seal) so flanges can be separated with standard tools Henkel Adhesives+1 | |
| Applications with exposure to oil, fuel, coolant, water/glycol | Because the cured polymer resists such fluids | According to the TDS: after aging, in motor oil it retains 100 % strength, in 50/50 water/glycol it can even exceed baseline in some cases Henkel Adhesives+3Henkel Adhesives+3Ellsworth Adhesives+3 |
| Moderately high temperature environments | Useful up to ~200 °C (i.e. many engine or machine environments) Henkel Adhesives+2Ellsworth Adhesives+2 |
From user reviews, some folks have used it in vintage engines to fix persistent leaks — for example one user credited Loctite 510 with solving a stubborn coolant leak on an aluminum V8 head gasket area. eBay Another noted that 510 is “more forgiving” for DIYers because it cures more slowly than some quicker-setting alternatives. Pelican Parts Forums
That said, it’s not universal — some users have reported that if it’s exposed to air (i.e. not properly confined), it might not harden as expected. Alfabb+1 So ensure your assembly truly conceals the sealant from air.
🔄 Loctite 510 vs 515 (and vs 518) — what’s different?
This is a question many people ask, especially when deciding which sealant to use in a particular situation. Here’s how Loctite 510 stacks up:
| Property | Loctite 510 | Loctite 515 | Loctite 518 |
|---|---|---|---|
| Cure speed | Moderate/medium (takes longer) Henkel Adhesives+2Pelican Parts Forums+2 | Generally faster cure than 510 (less forgiving) Pelican Parts Forums | Fast cure, often used when quick setting is required Pelican Parts Forums |
| Tolerance for delayed assembly | More forgiving (gives more “slack” time) | Less forgiving | Tight window |
| Oil resistance | Very good (no change in strength in motor oil per TDS) Henkel Adhesives+1 | Good, but may degrade more under certain exposures | Some users say 518’s strength actually increases in oil exposure in certain contexts Pelican Parts Forums |
| Strength loss in gasoline | 510 sits between 518 and 573 in strength loss when exposed to gasoline environments Pelican Parts Forums | Similar or somewhat more loss than 510 | Tends to lose more than 510 when exposed to gasoline (per user forum) Pelican Parts Forums |
| Best use scenarios | When you want a balance of working time and performance | When you want quicker cure but still reliable performance | When you need very fast cure (but you sacrifice some margin) |
From a discussion on an engine-build forum: one person summarized it thus:
“510 is the middle cure time, still long … 518 has the fastest cure time … 510 is more forgiving of DIY types.” Pelican Parts Forums
Another forum user, comparing 510, 518, and 573, noted:
“No change in strength when exposed to motor oil” for 510, and that 510 sits between 518 and 573 in terms of strength loss when exposed to gasoline. Pelican Parts Forums
Hence, your choice between 510, 515, 518 often comes down to how much working time you want vs. how fast you need the seal to set.
So, in short:
- Use 510 if you want some buffer time for alignment or adjustments.
- Use 515 when you want a faster cure but still need decent fluid resistance.
- Use 518 when you need fast cure and can precisely assemble before it locks up.
⏱️ How long does Loctite 510 take to cure?
Curing with anaerobic adhesives is more complex than a simple “X minutes” — because the cure rate depends on multiple factors: substrate, temperature, gap, and whether a metal activator is used. But we can glean useful reference points from Henkel’s data and user experience:
From Henkel’s datasheet:
- On steel, fixture time (i.e. when it holds a minimal torque) is about 25 minutes under certain conditions. Henkel Adhesives
- Full cure and full strength typically develop over 24–72 hours. Henkel Adhesives+1
- In the datasheet’s performance graphs, Loctite shows percentages of “% full strength” vs time: for steel at 22 °C, you might see ~50% of full strength at some tens of minutes, and near 100% after a few hours or more. Henkel Adhesives+2Ellsworth Adhesives+2
From user reports:
- One user claimed Loctite 510 cures much slower: at 22 °C, “50% cure in 3 hours” (compared to a faster product like Loctite 574 which they said would reach 50% in 45 minutes) Pelican Parts Forums+1
- Some users highlight the benefit of the slower cure: it gives more time to assemble, adjust, align parts, etc. Pelican Parts Forums+1
So as a rough guide:
- You might expect partial strength in ~30 minutes to a few hours (depending on conditions).
- Full strength will require 24 hours or more in many cases.
- Cooler temperatures, passive metal surfaces (e.g. stainless steel or plated surfaces), or larger gaps will slow down cure and may necessitate use of an activator. Henkel Adhesives
If cure speed is too slow for your application, Henkel recommends applying activator SF 7649 or SF 7471 to accelerate the cure. Henkel Adhesives
🛡️ Is Loctite 510 oil-resistant?
Yes — one of the selling points of Loctite 510 is that once cured, its polymer structure is quite tolerant of oils, fuels, and similar fluids. The technical information shows:
- In a test of chemical/solvent resistance, the Loctite TDS says: in motor oil (MIL-L-46152) at 125 °C, it retains 100% strength (i.e. no loss) after 100 h, 500 h, and 1000 h. Henkel Adhesives+1
- In 50/50 water/glycol, strength may actually increase (depending on test). Henkel Adhesives+1
- Against petrol (unleaded) at 22 °C, it retains ~95% strength after aging (though this varies with exposure time). Henkel Adhesives+2Ellsworth Adhesives+2
From user forums:
- Users commonly remark that Loctite 510 is reliable in engine / coolant / oil sealing applications.
- One user contrasted 510 with quicker-setting alternatives, saying that 510 maintained strength better under oil exposure in their view. Pelican Parts Forums+1
But a caveat: oil resistance is only guaranteed after proper cure. If the sealant is not fully cured (or was contaminated, exposed to air, or assembled incorrectly), oil may seep or degrade the seal.
Also, note that “oil resistance” does not necessarily mean “resistant to every chemical or solvent under all conditions.” Always check your specific environment (temperature, chemical exposure, pressure) against product specs.
How to use LOCTITE® 510 — step-by-step guide
Preparation (important!)
- Read the TDS & SDS first — confirm temperature/chemical limits and safety precautions for your application. Henkel’s TDS is the authoritative source for product limits and handling. Henkel Adhesives
- Gather tools & supplies
- Loctite 510 (tube or cartridge).
- Cleaner/degreaser (Loctite® cleaners or isopropyl alcohol).
- Scraper, wire brush or abrasive paper to remove old gasket material.
- Lint-free cloths.
- Applicator (dispenser/caulking gun or squeeze tube), mask/eye protection, gloves.
- (Optional) Loctite activator SF 7649 or SF 7471 if you need faster cure on passive metals or wide gaps. Henkel Adhesives
Step 1 — Disassemble & inspect
- Remove old gasket/sealant and any debris. Inspect mating faces for deep scratches, warping or burrs. Light machining or careful sanding may be needed for badly damaged faces. Clean off dirt, oil and grease thoroughly. Proper surface prep makes the seal work. (Henkel emphasizes clean, grease-free surfaces). Henkel Adhesives
Step 2 — Clean & degrease
- Use a solvent (Loctite cleaner or isopropyl alcohol) and lint-free cloth. If aqueous wash systems were used, verify they didn’t leave residues that affect cure (TDS warning). Let surfaces dry completely. Henkel Adhesives
Step 3 — Decide whether to use activator
- If you’re working with cold conditions, plated/passive metals (stainless, nickel plated), or larger gaps (>0.125 mm), apply an activator (SF 7649 / SF 7471) per Henkel instructions — this speeds cure and improves reliability. If conditions are warm and metal is active (fresh machined steel/aluminum) you can usually skip the activator. Henkel Adhesives
Step 4 — Apply the Loctite 510
- Apply a continuous, even bead to one flange face. For thin gaps (≤0.125 mm) a single bead is fine; for larger gaps, apply a rolled film to both faces. Place bead close to bolt holes and openings but avoid obstructing bolt threads. Follow the TDS recommendations on bead size / application method if available. Henkel Adhesives
Step 5 — Assemble & tighten
- Mate the parts, then tighten bolts gradually in a crisscross pattern to the recommended torque — this compresses the bead and excludes air. Tighten as soon as possible after assembly to avoid shimming (per Henkel directions). Wipe away excess squeeze-out; the exposed excess will not cure (it remains uncured while exposed to air). Henkel Adhesives
Step 6 — Allow curing time
- Expect partial sealing immediately (instant low-pressure seal) but full strength requires time. Typical guidance: partial strength within minutes to hours depending on substrate/temperature; full cure often reaches near-100% in 24–72 hours. Cooler temps, passive metals, or larger gaps lengthen cure time — activator can mitigate this. Henkel Adhesives
Step 7 — Test & put back into service
- After recommended cure time, perform a pressure test or functional test at low pressure first, then ramp up to operating pressure. Monitor for leaks and retorque if manufacturer requires.
Step 8 — Disassembly (if needed)
- When you later need to separate the flanges, use jacking screws or carefully pry them apart; avoid twisting or excessive leverage that could damage mating surfaces. Cured Loctite 510 is medium-strength; with the right technique parts can be separated using hand tools. Henkel Adhesives
As a quick visual, here’s a video showing Loctite 510 being used in sealing an engine:
In that video you’ll see how the sealant extrudes and is squeezed from mating surfaces, which helps you see exactly how to apply it in an engine/sealing scenario.
Handy application tips and safety reminders
Do not use Loctite 510 on plastics or flexible materials unless compatibility has been confirmed — it may stress-crack some plastics. Henkel Adhesives
Avoid air exposure of the seal area — the product cures anaerobically (absence of air). Any bead left exposed will not cure and must be cleaned. Henkel Adhesives
Use activator when cure seems too slow (cold, passive metals, larger gaps). Activators are sold separately. Henkel Adhesives
Personal protective equipment: gloves and eye protection while applying. Follow the SDS for ventilation and handling. Henkel Adhesives
🎯 Strengths, limitations and tips
Pros (What it does very well)
Good balance of working time vs performance — more forgiving than very fast-curing sealants
Excellent fluid and chemical resistance once cured — especially oil, coolant, fuel (within spec)
Temperature tolerance — up to ~200 °C is respectable for many mechanical use cases
Custom gasket formation — no need to stock many gasket shapes; you can seal odd or custom flanges
Disassemblable — medium strength allows you to take flanges apart with hand tools (with the right procedure)
Fills surface imperfections — scratches or small machining flaws up to ~0.25 mm gap can be sealed Henkel Adhesives+1
Limitations & caveats
Slow cure / long time to full strength — not ideal for applications needing immediate heavy load
Must be confined to exclude air — any exposure to oxygen will prevent cure in that area
Not recommended for plastics or flexible materials — stress cracking can occur, so compatibility testing is advised Henkel Adhesives
Not for pure oxygen or strong oxidizers (e.g. chlorine) — it’s not intended for such environments Henkel Adhesives
Application cleanliness is critical — surfaces must be free of oil, dirt, burrs, old gasket residue
Thickness / gap limitations — if the mating flange gap exceeds ~0.25 mm, performance may suffer Henkel Adhesives+1
FAQ summary (what people are searching for)
Q: What is Loctite 510 used for?
A: It’s a liquid gasket / flange sealant used on machined, rigid metal flanges where a custom gasket is needed, especially in engine, transmission, pump, or fluid-handling assemblies.
Q: What’s the difference between Loctite 510 and 515?
A: 515 cures faster (less working time), but may be slightly less forgiving; 510 is medium cure time so gives you more flexibility during assembly.
Q: How long does Loctite 510 take to cure?
A: Fixture in ~25 min in ideal conditions on steel; full strength typically in 24–72 hours, though partial strength develops earlier. Slower in cold or passive metal conditions.
Q: Is Loctite 510 oil-resistant?
A: Yes — once fully cured, it resists motor oil, coolant mixtures, fuels, and water/glycol blends within spec. In motor oil tests, it retained 100% strength after long exposures. Henkel Adhesives+1
Q: Can you use Loctite 510 on aluminum?
A: Yes — it is suitable for both steel and aluminum substrates, as long as surfaces are properly prepared and gaps are within spec. Henkel Adhesives
Q: Can Loctite 510 replace a pre-cut gasket?
A: Absolutely — that’s one of its common use cases, forming a custom in-situ gasket.
Where to buy Loctite 510 (reliable options)
Global / online retailers
- Henkel / Loctite official — use Henkel’s distributor locator to find authorized sellers and local technical support. (Best for ensuring genuine product and regional approvals). Henkel Adhesives+1
- Amazon — commonly stocked (50 mL tubes). Good for small quantities and quick delivery in many regions. Check seller ratings and SKU. Amazon+1
- Fastenal / Grainger / R.S. Hughes / Ellsworth — industrial suppliers that stock larger sizes (50 mL, 250 mL) and bulk packaging for workshops. Good for repeat purchases and industrial accounts. Fastenal+2Grainger+2
Kenya / East Africa (local options — faster delivery, local support)
- Lasap Kenya Ltd — appointed Loctite distributor in East Africa; useful for local availability and technical support. (Good to contact for bulk or industrial orders). Lasap Kenya
- Whizz (whizz.co.ke) — advertises Loctite 510 (250 mL listing) with local delivery across Kenya — handy for single orders. Whizz
- Finstar Industrial Systems Ltd — lists Loctite sealants in Kenya / East Africa; another local supplier to check for availability and pricing. finstarindustrial.com
- Ubuy Kenya — global marketplace that offers Loctite 510 shipped into Kenya (50 mL). Useful when local stock is limited. Ubuy Kenya+1
Market notes (buying tips)
- Tubes typically come in 50 mL (DIY/garage) and 250 mL (workshop/industrial). If you’ll use it frequently, 250 mL often yields better unit cost. Quality Bearings Online+1
- For critical applications, buy from an authorized distributor or recognized industrial supplier to avoid counterfeit or expired stock. Use Henkel’s distributor locator to confirm authorized resellers. Henkel Adhesives
🧾 Final thoughts & verdict
If I were your “sealant buddy,” here is my take:
- When to pick 510: You want a reliable, oil-resistant gasket in a metal-to-metal flanged joint, but you also want some leeway during assembly (i.e. you don’t want it to snap-curing too quickly). Loctite 510 gives a healthy balance of working time and performance, as long as you follow good application technique and give it time to cure.
- When to not pick 510: If your project demands extremely fast cure, or you have large gaps, or non-metal components, or you can’t confine the sealant from air, there might be better alternatives. In very high-temperature or extreme chemical conditions, you’ll need to verify that 510 is rated properly.
- Value: Many users rate 510 highly for its dependability in real-world engines and mechanical assemblies. On rating / review platforms, it consistently gets good marks. feefo.com
In short: Loctite 510 is a solid, workhorse gasketing sealant. It isn’t flashy or ultra-fast, but in the hands of someone who follows best practice, it can reliably seal flanges, resist fluids, and survive mechanical environments.
